Insulated Patio Roof Price per m2 Australia: A Comprehensive Selection & Financial Guide

Installing an insulated patio roof is one of the most effective strategies for extending functional living space across Australian homes. Given Australia’s extreme climate—ranging from intense summer heatwaves and high ultraviolet radiation to severe coastal storms and frosty winter mornings—uninsulated single-skin metal or polycarbonate roofs can make outdoor spaces uncomfortable due to radiant heat absorption and heavy rain noise.

Insulated composite panels (often referred to as insulated sandwich panels) combine a durable top roofing skin, a dense insulating core, and a pre-finished ceiling underside into a single structural panel. Evaluating the true financial commitment requires looking beyond basic panel supply tags. Determining the true insulated patio roof price per m2 Australia homeowners encounter involves analyzing core materials (EPS vs. PIR), panel thickness, structural framing, foundation requirements, council approvals, and trade labor rates across different states. This guide details baseline material and installation pricing, compares primary panel categories, presents practical construction scenarios, outlines budgeting frameworks, and highlights long-term maintenance practices.

Overview of Insulated Patio Roof Price per m2 Australia

Evaluating the insulated patio roof price per m2 Australia market reveals a material-only range of $95 to $220 AUD per $m^2$ for supply-only insulated roof panels depending on core thickness (50mm to 150mm), skin profiles, and manufacturer brand.

When factoring in structural steel or aluminum framing (posts, beams, and gutters), concrete footings, flashings, council permits, engineering certification, and professional trade labor, fully installed turnkey projects across Australia typically range between $300 and $580+ AUD per $m^2$ for flat or skillion designs. Complex roof structures—such as gable, flyover, or multi-level designs—can increase fully installed rates to $550 to $850+ AUD per $m^2$.

+-----------------------------------------------------------------+
|            AUSTRALIAN INSTALLED COST RANGE (PER M²)             |
|                        $300.00 - $580.00+ AUD                   |
+-----------------------------------------------------------------+
| [= Panels: $95-$220/m² =] [= Framing/Piles: $75-$160/m² =] [= Trade Labor: $130-$200+/m² =] |
+-----------------------------------------------------------------+

Core Concepts and Thermal Performance

Insulated patio panels feature a three-layer composite sandwich construction:

1. Top Exterior Skin: High-tensile pre-painted steel (such as Colorbond) engineered to resist weather exposure.

2. Insulating Core: Expanded Polystyrene (EPS), Polyisocyanurate (PIR), or Mineral Wool providing thermal insulation (R-values ranging from R-1.5 to R-4.0+) and sound dampening.

3. Bottom Ceiling Skin: A smooth or embossed pre-finished steel underside that replicates the appearance of a plastered ceiling.

Primary Cost Drivers in the Australian Market

• Core Thickness and R-Value: Thicker panels (e.g., 100mm or 150mm) cost more per square meter than 50mm panels but allow wider structural spans (reducing the number of visible support beams) and offer higher thermal insulation.

• Roof Geometry (Skillion vs. Flyover vs. Gable): A simple attached flat or skillion roof requires minimal structural timber/steel framing. Flyover roofs (mounted above the house roofline using specialized bracketry) and pitched gable roofs demand additional framing, flashing, and labor.

• Bushfire Attack Level (BAL) & Wind Ratings: Properties in designated bushfire overlay zones (BAL-29 to BAL-FZ) or cyclone-prone regions (such as Far North Queensland or Western Australia) require certified non-combustible cores (PIR/Mineral Wool) and heavy-gauge post engineering, increasing base costs.

• Regional Trade Labor Rates: Labor charges vary across states. Queensland offers competitive pricing due to high market supply, whereas New South Wales, Victoria, and the ACT command higher installation rates.

Key Categories, Core Materials, and Profile Specifications

Insulated patio roof panels sold across Australia are categorized primarily by core insulation material, thickness, top skin profile, and span capacity.

Choosing the Right Panel Specification

Selecting between panel specifications requires balancing climate conditions against structural span goals. 50mm panels provide basic heat reduction for small courtyards but require more frequent support rafters. 75mm and 100mm panels represent the optimal balance for standard family patios, enabling unsupported spans of up to 4.5 to 6 meters without mid-framing beams while keeping surface temperatures cool during peak summer heat.

Practical Project Scenarios Across Australian Regions

Site terrain, roof attachments, wind classifications, and local council regulations shape total construction expenses across Australian suburbs.

Scenario A: Skillion Patio Roof in Suburban Brisbane (24 $m^2$)

Constructing an attached 6×4-meter skillion (flat sloped) patio roof using 75mm EPS insulated panels over an existing concrete slab in South East Queensland.

• Components & Materials: 24 $m^2$ of 75mm EPS insulated panels (Colorbond top skin, smooth ceiling underside), powder-coated steel post and beam framing, structural ledger beam, perimeter gutters.

• Process Steps:

  1. Secure municipal building approval and certified structural engineering computations.

  2. Bolt structural ledger bracket to the house brick veneer wall using masonry anchors and flashing.

  3. Core drill existing concrete slab and set 2 structural steel support posts in footings.

  4. Interlock 75mm insulated panels, secure with long structural roof screws, and install perimeter gutters.

• Relevance: Demonstrates a common suburban installation leveraging standard skillion geometry, keeping fully installed turnkey costs between $7,800 and $11,500 AUD ($325 to $480/m²).

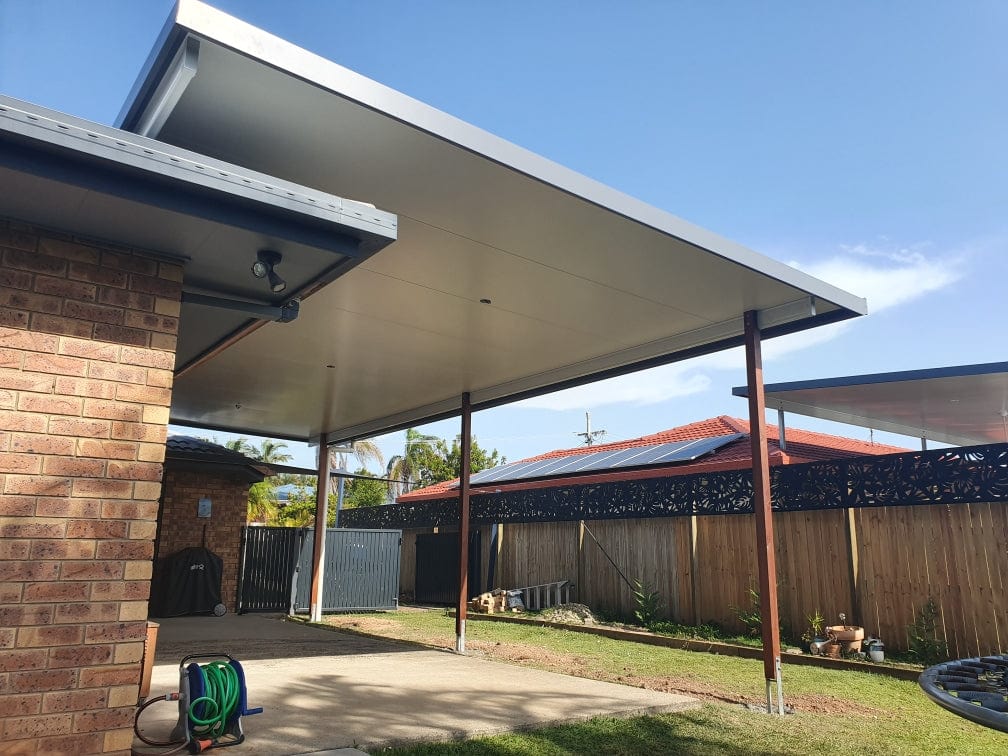

Scenario B: High-Clearance Flyover Roof in Sydney (35 $m^2$)

Building a 35 $m^2$ flyover patio roof mounted above the house gutter line using 100mm EPS insulated panels to maximize ceiling height and ventilation in Western Sydney.

• Components & Materials: 35 $m^2$ of 100mm EPS insulated panels, custom Extenda-type roof brackets, heavy-duty aluminum posts/beams, high-capacity gutter system, integrated LED wiring channels.

• Process Steps:

  1. Remove roof tiles to anchor heavy-duty flyover brackets directly to house internal wall top plates.

  2. Install waterproof flashing boots around bracket roof penetrations.

  3. Frame high-clearance support beams elevated 500mm above main house gutter line.

  4. Lay 100mm insulated panels to span 5.5 meters without center rafters; run internal lighting cables.

• Relevance: Illustrates how flyover bracketry and longer panel spans increase light and airflow, setting total installed costs between $14,000 and $22,500 AUD ($400 to $640/m²).

Scenario C: High-Wind Coastal Patio in Regional WA / SA (40 $m^2$)

Constructing a large 40 $m^2$ gable-and-skillion combination insulated patio roof in an exposed coastal zone requiring high wind-rating (Region B/C) compliance.

• Components & Materials: 40 $m^2$ of 100mm PIR fire/wind-rated insulated panels, heavy-gauge C-section steel structural framing, cyclonic tie-down brackets, marine-grade fasteners.

• Process Steps:

  1. Excavate deep concrete pier footings (900mm deep) per structural engineer cyclonic specifications.

  2. Erect heavy C-section structural steel frame with welded post-to-beam joints.

  3. Lay 100mm PIR panels using cyclonic assemblies and neoprene sealing washers.

  4. Apply marine-grade protective sealants along all exposed panel edges.

• Relevance: Highlights coastal builds where high wind classifications and heavy framing requirements push total installed prices from $18,000 to $30,000+ AUD ($450 to $750+/m²).

Comparative Scenario Analysis

Attached skillion builds in suburban areas represent the most economical price tier per square meter. Flyover installations introduce specialized roof bracketry, tile work, and higher labor safety requirements. Coastal installations demand heavy structural steel, cyclonic fasteners, and thick panels to satisfy localized wind-load codes.

Planning, Cost, and Resource Allocation

Proper financial preparation requires breaking down quotes into insulated panels, framing steel/aluminum, footings, flashings, council fees, and professional trade labor. The sample budget below details typical expenses for a standard 25 $m^2$ residential insulated patio roof in Australia.

Note: Figures above are estimates in Australian Dollars (AUD) based on national market averages. Actual quotes vary based on council regulations, site access, and specific merchant pricing.

Strategies, Framing Choices, and Support Options

Selecting appropriate structural framing, fastener technologies, and panel core types impacts long-term durability and thermal comfort.

+-----------------------------------------------------------------+
|                  STRUCTURAL FRAMING COMPARISON                  |
+-----------------------------------+-----------------------------+
|    POWDER-COATED STEEL FRAMING    |   EXTRUDED ALUMINUM FRAMING  |
|  [+] High structural load capacity| [+] 100% rust & corrosion proof|
|  [+] Supports long panel spans    | [+] Ideal for coastal sites |
|  [-] Can rust if scratched near coast[-] Higher material outlay  |
+-----------------------------------+-----------------------------+

1. Expanded Polystyrene (EPS) Panels

The most widely installed core material in Australia, offering an economical balance of lightweight strength and thermal resistance.

• Advantages: Economical initial cost; lightweight; moisture-resistant; excellent thermal insulation (R-2.4+ for 75mm).

• Disadvantages: Melts under direct flame exposure; requires higher thickness to match PIR thermal performance.

2. Polyisocyanurate (PIR) Core Panels

High-density thermoset plastic core material offering superior fire performance and high thermal insulation per millimeter.

• Advantages: High fire safety rating (suitable for BAL zones); higher R-value per thickness unit; superior structural rigidity.

• Disadvantages: Higher material purchase price than standard EPS panels.

3. Integrated Internal Wiring Channels

Insulated panels manufactured with an internal factory-cut conduit groove running through the core.

• Advantages: Allows electricians to pull wiring for ceiling fans, downlights, and speakers through the panel core, keeping ceilings clean.

• Disadvantages: Requires precise layout planning prior to panel ordering.

4. Flyover Roof Mounting Brackets (Extenda Brackets)

Specialized heavy-duty steel brackets attached to house wall top plates, extending through roof tiles or sheet roofing.

• Advantages: Elevates patio height; permits breeze circulation; allows natural light to enter home windows beneath.

• Disadvantages: Requires roof tile removal, waterproof flashing boots, and specialized installation labor.

Safety Hazards, Structural Risks, and Common Pitfalls

Failing to account for wind uplift, seal integrity, or local council approvals can result in structural failure or property damage.

Inadequate Gutter Fall and Water Overflow

• The Issue: Rainwater backing up under insulated panel ends and leaking into the patio ceiling space during heavy downpours.

• Why It Happens: Setting perimeter gutters with insufficient fall (slope) or using undersized downspouts for localized rainfall volumes.

• Prevention: Ensure a minimum 1:500 fall on perimeter gutters and fit high-capacity 100x75mm downspouts.

Omitting Internal Foam Sealing Gaskets

• The Issue: Warm, humid air entering panel interlock joints, causing condensation drips along ceiling seams in winter.

• Why It Happens: Skipping the application of continuous butyl tape or foam joint seals during panel interlocking.

• Prevention: Apply manufacturer-specified sealant tape along female panel joiner channels before locking panels together.

Non-Compliance with Local Council Approval

• The Issue: Receiving council fines or demolition orders for unapproved outdoor structures.

• Why It Happens: Assuming minor patio structures are exempt from local development regulations.

• Prevention: Verify local council requirements before starting construction; secure formal Building Approval and Form 15 structural certificates.

Fastener Corrosion in Marine Zones

• The Issue: Roof screws rusting, snapping, or causing dark chemical rings around panel holes in coastal environments.

• Why It Happens: Using standard galvanized screws in salt-spray zones.

• Prevention: Always specify Class 4 or Class 5 corrosion-resistant stainless steel roof fasteners within 1 kilometer of breaking surf.

Maintenance Routines and Long-Term Care Best Practices

While insulated patio roofs require far less maintenance than natural timber structures, periodic cleaning preserves surface finishes and prevents joint leaks.

+-----------------------------------------------------------------+
|                   SEASONAL UPKEEP CHECKLIST                     |
+-----------------------------------------------------------------+
| BIANNUAL CARE (AUTUMN & SPRING):                                |
| [ ] Clear Perimeter Gutters: Sweep leaves & dirt out of channels|
| [ ] Hose Ceiling Underside: Wash off dust & cobwebs with water  |
|                                                                 |
| ANNUAL SERVICE:                                                 |
| [ ] Inspect Panel Seams: Check interlock sealants for gaps      |
| [ ] Check Fasteners: Ensure roof screw neoprene washers are sound|
+-----------------------------------------------------------------+

Ongoing Upkeep Protocol

• Clear Gutters and Downspout Channels: Inspect and clear leaves, twigs, and dirt from perimeter gutters twice a year to prevent water back-up.

• Wash Powder-Coated Surfaces: Clean top skins and ceiling undersides annually using warm water, mild dish soap, and a soft microfiber sponge. Avoid abrasive scrubbing pads that can scratch Colorbond factory paint finishes.

• Inspect Roof Fasteners: Check roof screw neoprene washers every 2 to 3 years; replace cracked or degraded washers to preserve waterproof seals.

• Keep Vegetation Trimmed: Prune overhanging tree branches to prevent falling limbs from denting top steel skins or depositing sap.

Project Documentation and Record Keeping

Maintaining organized project records supports product warranty claims, simplifies insurance reviews, and assists with home resale disclosures.

Recommended Documentation Folder

Keep a dedicated physical or digital home improvement binder containing:

1. Purchase Receipts and Panel Spec Sheets: Receipts detailing panel brand, core type (EPS/PIR), thickness, and Colorbond color codes.

2. Council Approvals & Form Certificates: Official municipal building permits, engineering drawings, and structural compliance sign-offs.

3. Manufacturer Warranty Certificates: Printed copies of 10- to 20-year structural panel and paint warranty documents.

Sample Project Documentation Entries

RECORD ENTRY 1: PANEL PURCHASE & PERMIT APPROVAL
- Date: March 14, 2026
- Supplier: Australian Insulated Panel Merchant (Invoice #AU-88412)
- Panel Spec: 75mm EPS Insulated Panel (Colorbond Surfmist Top / Smooth White Ceiling)
- Dimensions: 5.0m Length x 5.0m Total Width (25 m²)
- Council Clearance: Approved under Municipal Building Permit #B-2026-9912

RECORD ENTRY 2: INSTALLATION & WARRANTY REGISTRATION
- Installation Date: March 28, 2026
- Builder: Certified Patio & Decking Builders (Invoice #1092)
- Fasteners Used: Class 4 Stainless Steel Roof Screws with Neoprene Washers
- Warranty Registered: 15-Year Structural Panel & Paint Warranty

Closing Summary

Evaluating the insulated patio roof price per m2 Australia property owners face requires balancing panel supply costs ($95–$220/m²) against total installed turnkey pricing ($300–$580+/m²). By choosing appropriate core thicknesses for thermal comfort, selecting stable roof geometries (skillion, flyover, or gable), securing council approvals, and conducting regular gutter maintenance, Australian homeowners can construct a comfortable outdoor space built to handle the country’s severe climate for decades.

Frequently Asked Questions (FAQ)

What is the average installed price per m² for an insulated patio roof in Australia?

Fully installed turnkey prices for an insulated patio roof in Australia typically range from $300 to $580+ AUD per square meter for standard skillion or flat designs. Complex flyover, gable, or multi-level installations generally range from $550 to $850+ AUD per square meter depending on framing and access conditions.

Is an insulated patio roof better than a standard Colorbond single-skin roof?

Yes. While single-skin Colorbond steel is cheaper upfront ($45–$55/m² installed), it absorbs radiant heat, making outdoor areas hot in summer, and creates loud noise during rainstorms. Insulated panels block heat transfer, dampen rain noise dramatically, and provide a clean ceiling appearance.

Do I need council approval for an insulated patio roof in Australia?

In most cases, yes. Any permanent roof structure attached to a dwelling or exceeding minor building dimensions requires local council development approval and certified engineering documentation. Always consult your local council or patio builder before starting construction.

How thick should my insulated patio roof panels be?

For most Australian suburban homes, 75mm to 100mm EPS or PIR panels provide an optimal balance. They offer high thermal insulation (R-2.4 to R-3.1+) and allow unsupported structural spans of 4.5 to 6 meters, eliminating the need for extra support beams.
